Version: 2.7

Themes

A theme represents a set of values that directly impact the visual appearance of components.

  • For example a theme defines the Primary Color that should be used by components (for example orange)
  • And Visual Components use those values when rendered on the screen. For example a Button will be orange if the Primary Color is orange.
info

Internally the Themes use the Contexts feature. It can be helpful to read the context documentation if you are not yet familiar with it.

Using themes

info

If you don't provide a theme, the Core components will work with a default appearance. Using Themes is not mandatory for a project.

Create a Theme in a project

Themes are registered in your project using a Static Data Folder.

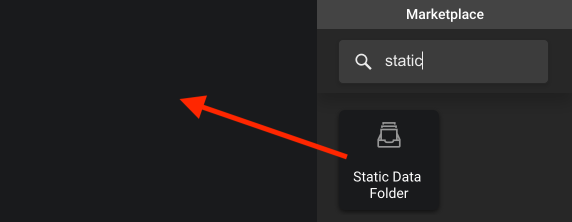

  • Create a Static Data Folder

    themes-create-static-data-folder

  • You can then give a name to this static folder and open it

    themes-rename-static-data-folder

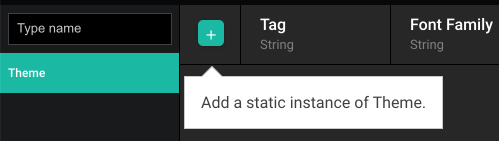

  • Click the + button to create a Theme instance

    themes-create-instance

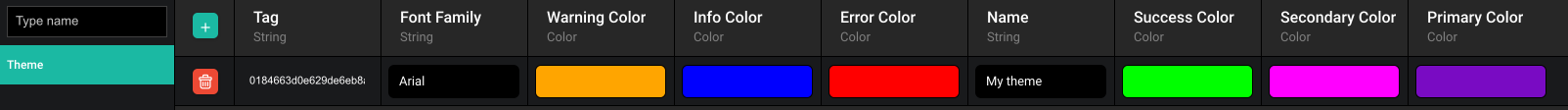

  • Set the Theme's properties according to the desired visual appearance

    themes-define-properties

tip

Copy the tag of the theme you would like to use in your application.

Set a Theme for an application

You can set the Theme for an application from anywhere in your app. However, the best place to do so is in the Properties tab of the UI App.

  • Open your UI app where you want to set a theme

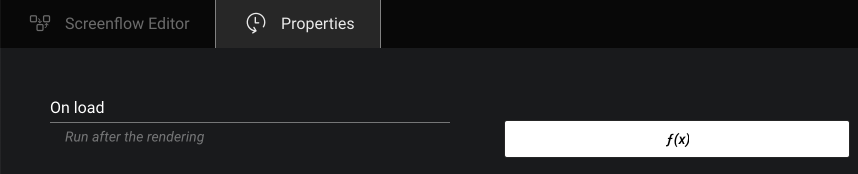

  • Navigate to the Properties editors and open the On Load f(x)

    themes-ui-app-properties-editor

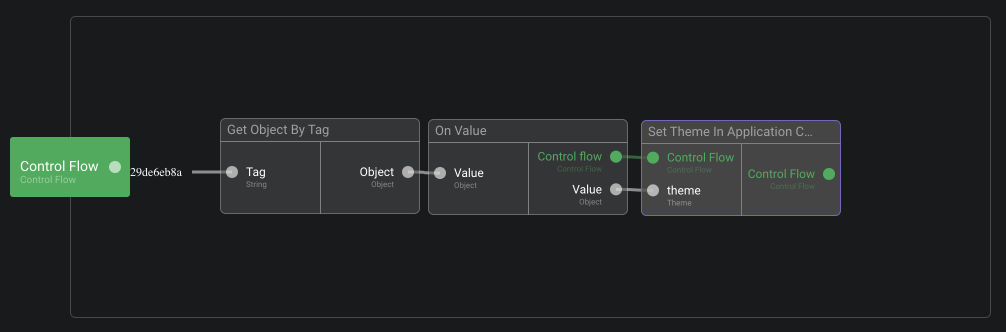

  • In this editor, branch the following bricks like in the image below.

    themes-set-theme-in-application-context

That's it ! Now all the Visual Components in your app will use the Themes properties from the theme you have assigned.

tip

Use the them tag you copied above as input value for the Get Object By Tag brick.

info

You must use the On Value brick to ensure that the Get Object By Tag brick returns the correct value before setting the theme in the Application Context.

Use a Theme in a custom Visual Component

Imagine you are building an application with a custom Header Visual Component. You might want this header to use the current Primary Color of the application (based on the current theme). This can be achieved by:

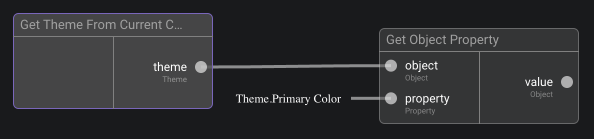

  • using the Get Theme From Current Context brick which will return the currently assigned theme instance
  • and using a Get Object Property brick to get the desired property

theme-get-current-primary

tip

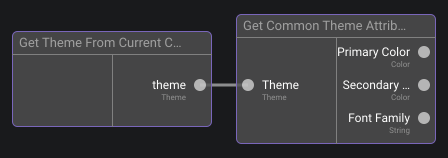

Alternatively you can use the Get Common Theme Properties brick when you want the Primary Color, Secondary Color or Font Family

theme-get-current-common

Visual Example

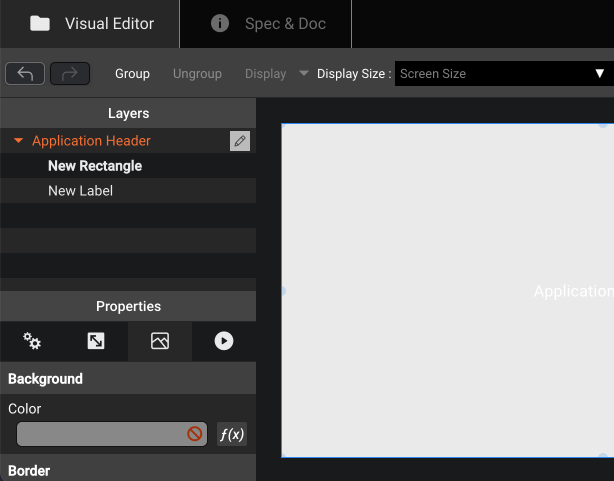

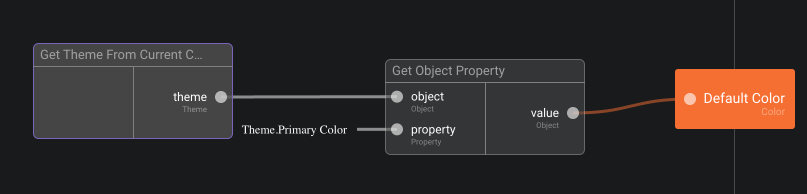

Visual ComponentFunction to define the background color
themes-header-rect-background-propthemes-header-rect-background-function
The background property is defined by f(x)And the value of the background color is retrieved by the theme currently assigned in the context

Apply a different theme to a subpart of your application

So far we have seen how to use Themes at the application level. This will change the visual appearance of all visual components in the application in the same way. Now if you need to set a specific theme for a particular area of your application, you can granularly set a theme in this context.

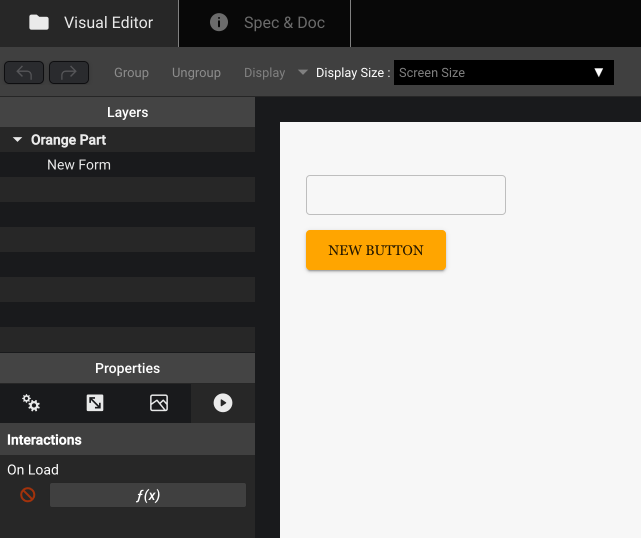

  • Open the "On Load" f(x) of the Component that must use a specific theme

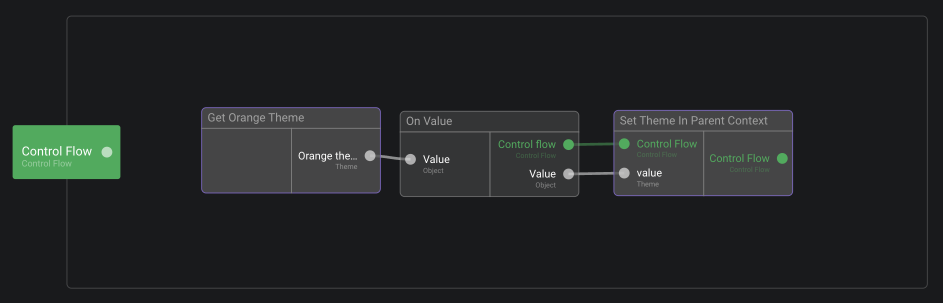

  • In this function editor, use the Set Theme In Parent Context to set the desired theme in the context of the whole component.
Visual ComponentFunction to set the custom theme
themes-multiple-on-load-propthemes-multiple-on-load-function
Use the On Load f(x)Assign a specific theme for this component
info

You might be tempted to use the Set Theme in Current Context in the On Load above. However this will assign the theme in the Context of the On Load function, which is a child context of the component. If the purpose is to make the whole component react to the specified theme, you must assign it to the parent context.
